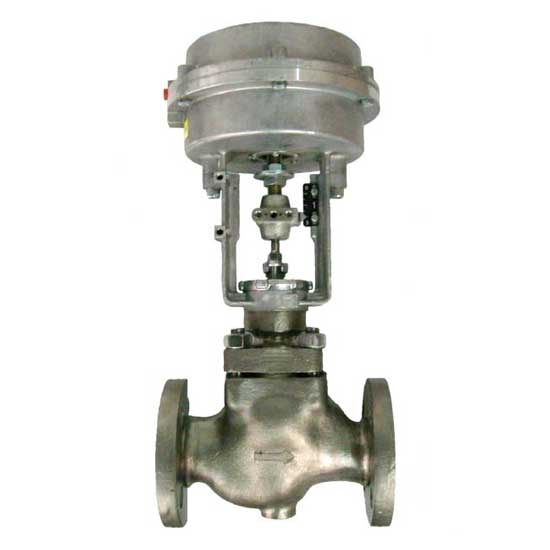

CV9105-HD-24 Heavy Duty Cage Control Valve

Actuator Type Pneumatic, diaphragm-actuater type 05. Direct or reverse acting with non-reversible body Body Type Single-seated, unbalanced, straight-through, cage type. Material Cast Iron, Carbon Steel, Stainless Steel. Other alloys available as options Sizes Threaded ends and socket-welded ends: 1 and 1.25” (25 and 32mm). Flanged ends: 1 and 1.25” (25 and 32mm). Rating Cast iron with threaded ends: 250 lb. ANSI B16.1 Cast iron with flanged ends: 125 & 250 lb. ANSI B16.1 Carbon steel and stainless steel with threaded ends: 600 lb. ANSI B16.34 Carbon steel and stainless steel with flanged ends and RTJ ends: 150, 300, and 600…

SKU: CV9105-HD-24

Category: Actuator, In Stock

Description

Description

SKU: CV9105-HD-24

NorEast 9100 Series for low, medium and high pressure systems in oil refineries, petrochemical, chemical, pulp and paper, steel and HVAC

Sizes: 1″ through 8″ [25 – 200mm]

Pressure Ratings: Class 150 to 600

Operating Temperatures: -150°F to 750°F [-101°C to 399°C]

Leakage Classification: II to V

Give us a call to discuss your application

The Model 9105 is single-seated, heavy-duty, unbalanced cage valve. It features a compact type 05 pneumatic diaphragm actuator. The spring-type actuator provides either direct or reverse action as specified.
Accessories:
• Pneumatic and electro-pneumatic positioners
• Top- or side-mounted handwheel (push type)
• Micro Switch precision switches
• Solenoids
• Air sets
• Flushing or purge connection (1/4” N.P.T)
• Drain connection (3/8” N.P.T.)

Additional information

Actuator Type

Pneumatic, diaphragm-actuater type 05. Direct or reverse acting with non-reversible body

Body Type

Single-seated, unbalanced, straight-through, cage type.

Material

Cast Iron, Carbon Steel, Stainless Steel. Other alloys available as options

Sizes

Threaded ends and socket-welded ends: 1 and 1.25” (25 and 32mm).
Flanged ends: 1 and 1.25” (25 and 32mm).

Rating

Cast iron with threaded ends: 250 lb. ANSI B16.1
Cast iron with flanged ends: 125 & 250 lb. ANSI B16.1
Carbon steel and stainless steel with threaded ends: 600 lb. ANSI B16.34
Carbon steel and stainless steel with flanged ends and RTJ ends: 150, 300, and 600 ANSI B16.34
Carbon steel and stainless steel with socket ends: All schedules.

Bonnet Type

Plain: For process temperatures between 32° to 450°F (0° to 232°C). Die formed graphite packing
can be used for temperatures up to 750°F (399°C).
Extension Column: For process temperatures from -150° to 32°F (-101° to 0°C).
Radiation Fin: For process temperatures to 1050°F (566°C). Not furnished with cast iron bodies.
Bellows seal: Used when a positive stem seal is required, for process temperatures up to 750°F
(399°C).

Bonnet Packing

Bolted Box: PTFE V-Ring standard, Optional PFTE graphite or die-formed graphite

Cage

One piece with seat machined into cage
Available either with equal percentage or linear characteristics

Trim Material

17-4 PH hardened stainless steel trim standard. Stellite and other alloys trims available as options
PTFE soft seat also available for class VI shutoff.
